【停产】阿童木ATOMOS AtomX miniSSD系列阿童木4K工作流固态硬盘SSD 500G 1TB ATOMXMIN500PK

1568.00

咨询

  • “缺货” 标题含有缺货字样 会不定期进行补货,具体根据厂商和供应商的到货时间,详情可咨询客服
  • “停产” 标题含有停产字样 此商品仅供展示
  • “预售” 标题含有预售字样 表示预约意向 如若需求可咨询客服
  • 500G 售价 1568元
    1TB售价 3100元

    Overview

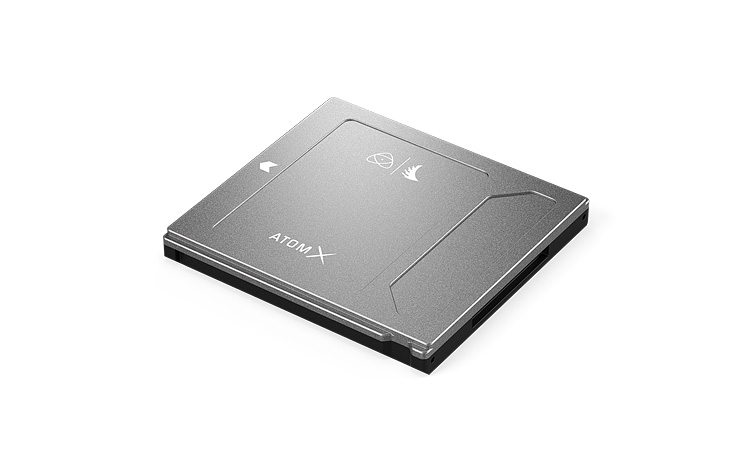

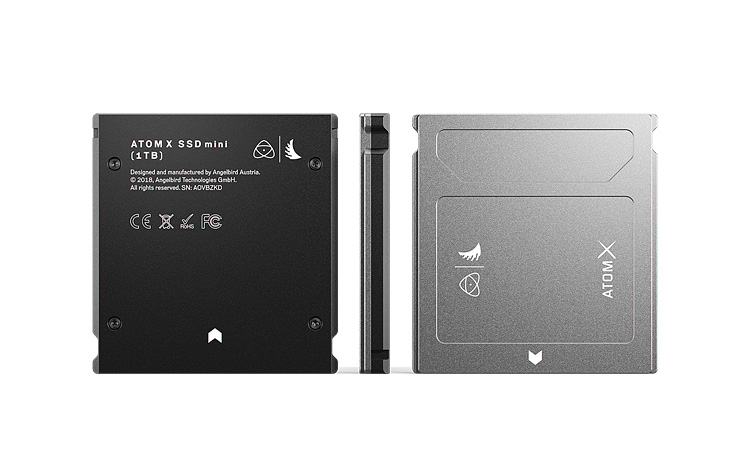

    Sony AtomX SSDmini

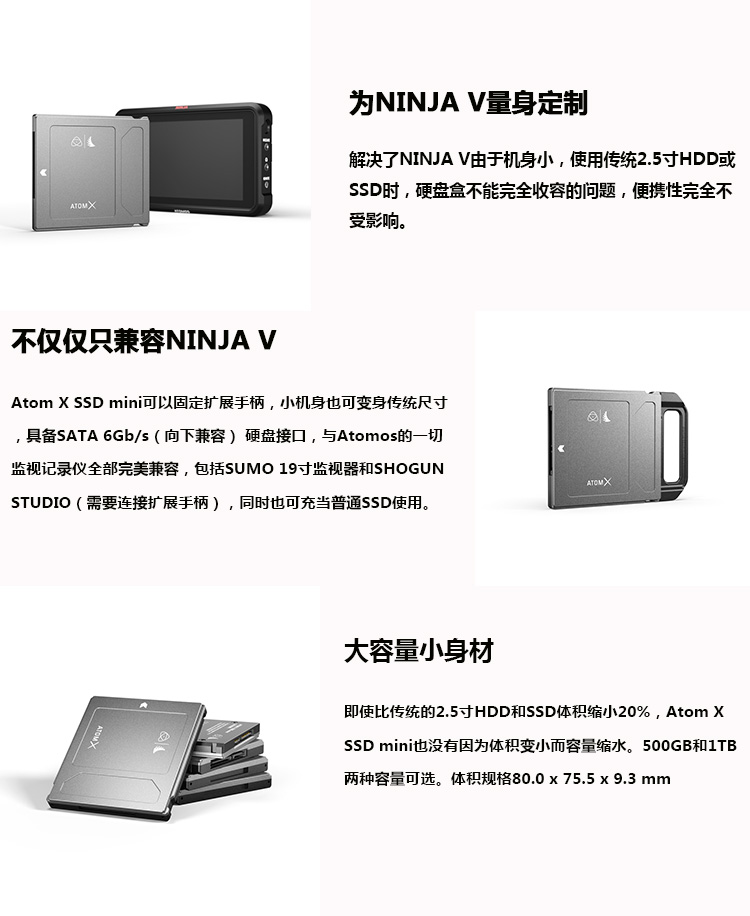

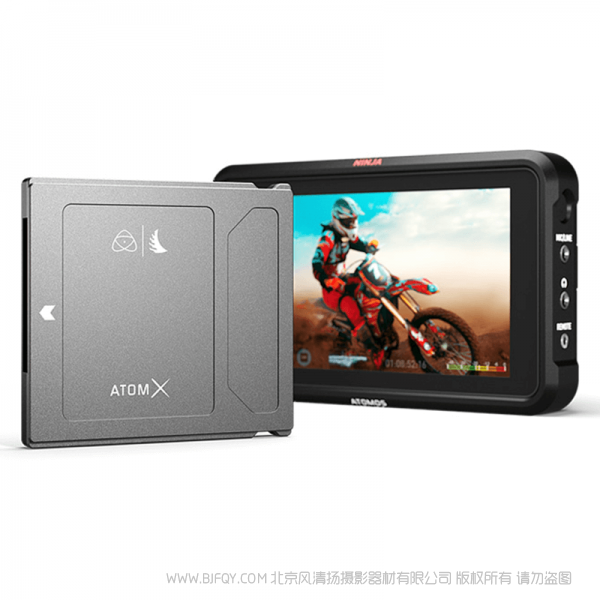

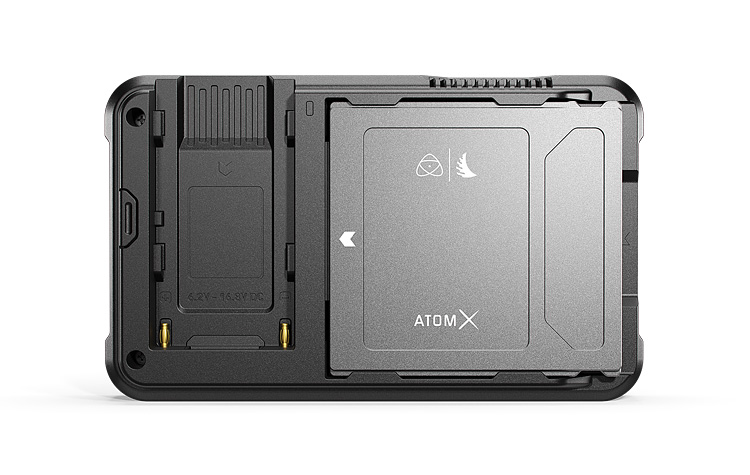

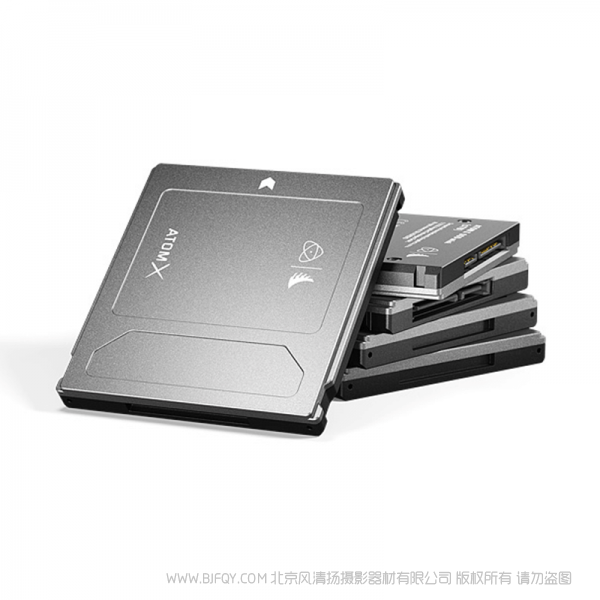

    The Sony AtomX SSDmini is smaller than regular SSD, designed specifically for the Atomos Ninja V recorder. At only 3.15 in long and 1.97 in wide, it is 20% smaller than other conventional 2.5-inch SSDs and with the super robust metal-cased construction, it perfectly fits into the compact card slot of Ninja V.

     With a built-in SATA III connector, the Sony AtomX SSDmini can be used with 7-in and 19-in Atomos monitor recorders. For use with 19-in Atomos monitor recorders, just screw the Sony AtomX SSDmini Handle (sold separately) onto the Sony AtomX SSDmini. The drive can easily be inserted and removed from the disk slot, eliminating the need to use the Master Caddy II.*1


    *1 For use with Sumo19, Sumo19M and Shogun Studio, AtomX SSDmini handles (ATOMXSSDH1) are necessary.

    Features

    Compatible with All Codecs Supported by ATOMOS Recorders

    The Sony AtomX SSDmini achieves superfast transfer speeds: 550-MB/s read speed and 500-MB/s write speed. Certified by Atomos*2 and compatible with all codecs supported by Atomos recorders, enabling users to shoot in the highest video formats without any frame drops.

    *2 Certified by Atomos as of December 2018.

    Available 3 sizes up to 2 TB

    The Sony AtomX SSDmini is available in 500-GB, 1-TB, and 2-TB storage options. You can switch 500-GB drives frequently to record shot clips, or you can shoot hours of video using a single storage of 2 TB, for example, approx.120 min in 4K 60p ProRes HQ mode.

    The Sony AtomX SSDmini series allows you to choose with plenty of flexibility to meet your needs for advanced video creation.

    Highly reliable

    With a durable connector tested over 3,000 times and shock resistance of up to 1,500 G/0.5 ms, the Sony AtomX SSDmini comes with the reliability you expect from Sony.











    通用
    容量500 GB | 1 TB
    外形
    兼容*
    尺寸SSDmini
    尺寸80.0 x 75.5 x 9.3毫米(3.15×2.97 x 0.37英寸)
    重量~90.0克| ~3.2盎司
    性能
    顺序读取速度1560 MB/s
    持续读取速度1 540 MB/s
    顺序写入速度1520 MB/s
    持续写入速度1500 MB/s
    访问时间(R/W)~65μs| 40μs

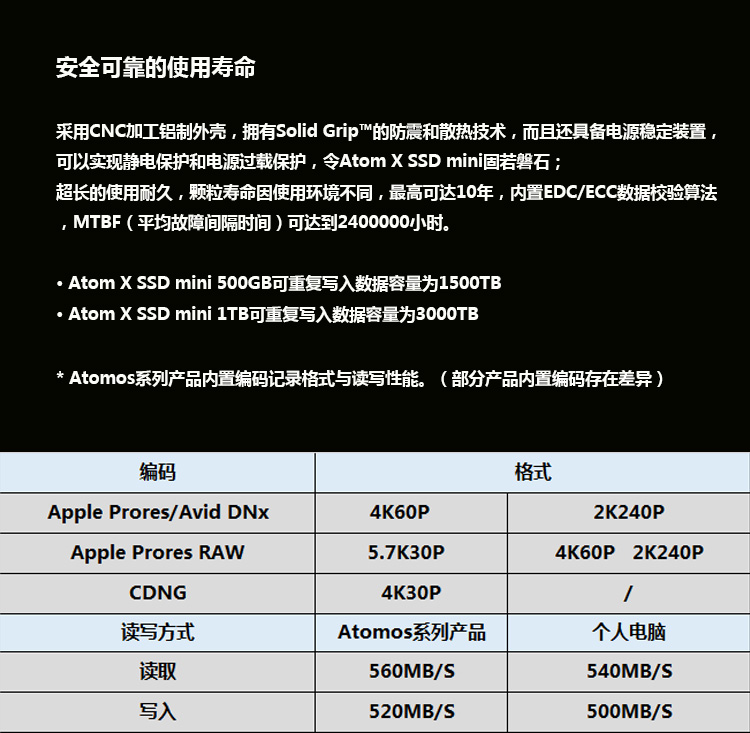

    可靠性
    MTBF2,400,000小时
    数据可靠性内置EDC | ECC功能
    数据保留25°下10年
    持续力500 GB:高达1,500 TBW
    1 TB:高达3,000 TBW
    认证符合RoHS,CE和FCC标准,REACH
    电源
    直流输入电压5V±10%
    用电量(空闲/较大)500 GB:0.35 W / 3.0 W
    1 TB:0.35 W / 3.5 W.
    技术
    接口SATA 6 Gb / s,支持3 Gb / s和1.5 Gb / s,
    符合SATA 3.0标准
    OVER PROVISIONING约9%
    特点温度传感器,过载保护,TRIM,ECC,EMS保护,内置缓存,SMART,NCQ
    环境
    抗冲击(运行)1000G / 0.5ms
    抗振性(运行)2.17 G RMS
    工作温度-20°C~ + 70°C
    储存温度-40°C~ + 85°C
    操作湿度5%至95%无冷凝
    *兼容性列表
    NINJA V | 忍者火焰| NINJA INFERNO | SUMO 19 * | SUMO 19M * | SHOGUN FLAME | SHOGUN INFERNO | SHOGUN STUDIO *
    * SUMO 19 / 19M和SHOGUN STUDIO需要使用Atomos SSDmini适配器手柄。

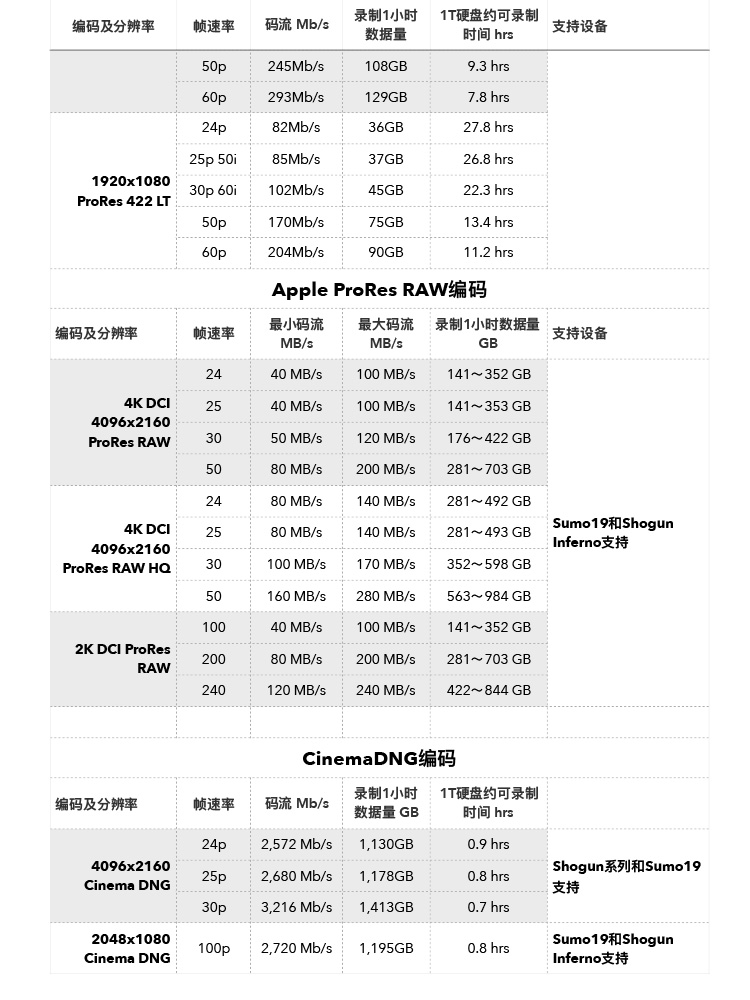

    支持的编解码器
    4k60p 2k240p Apple ProRes / Avid DNx 5.7k30p 4k60p 2k240p Apple ProRes RAW 4k30p CDNG

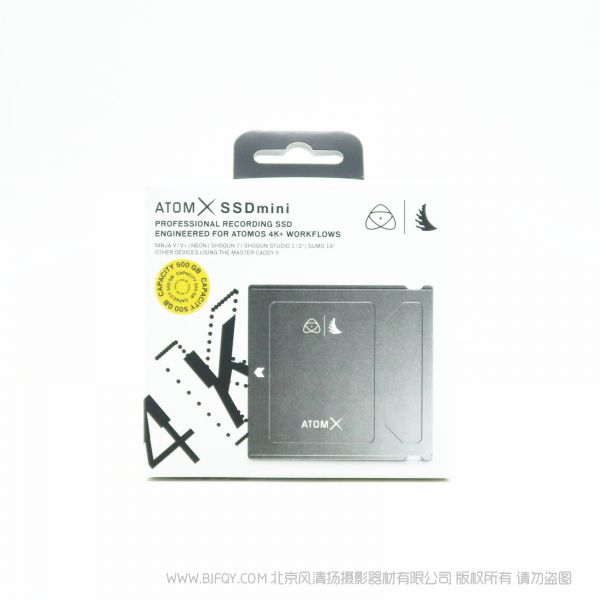

    包装内容
    •AtomX SSDmini
    •完整有限保修和其他免费软件许可和内容的激活码
    保修2
    超出3年有限保修或TBW阈值
    1 …基于内部测试的速度。实际传输速率和容量可能因系统硬件和其他因素而异
    2 …要获得完整的有限保修,产品需要在购买后30天内在Angelbird个人服务门户上注册。如果未在此期限内注册,则特定市场的法律保障期将生效。
