Tilta 铁头 ES-T21 兔笼 Camera Cage for Blackmagic PYXIS 6K/12K Pro Kit

配置名称	图片	价格

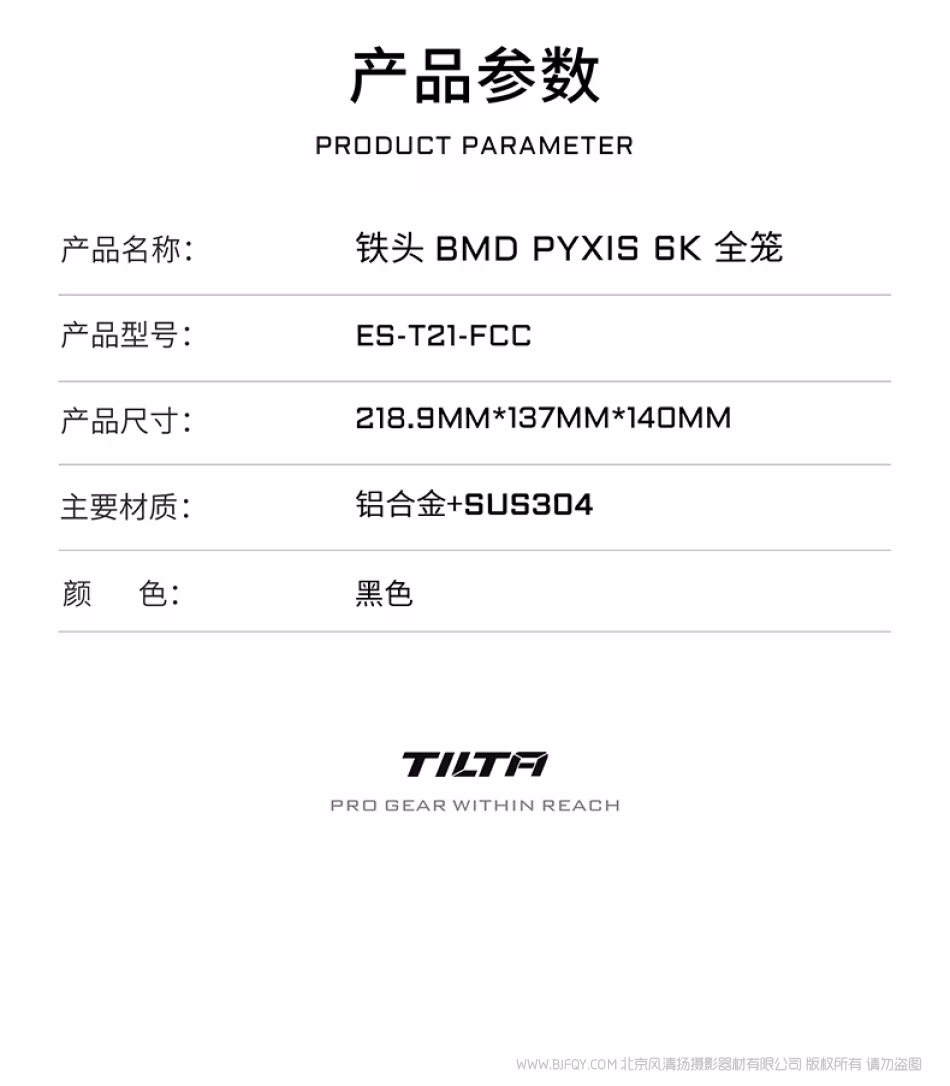

【全笼】适用BMD PYXIS 6K ES-T21-FCC		699元

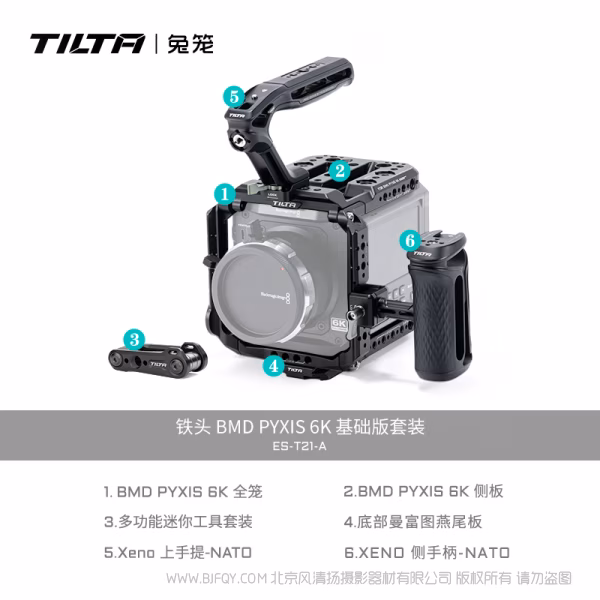

【基础版套装】适用BMD PYXIS 6K ES-T21-A		1099元

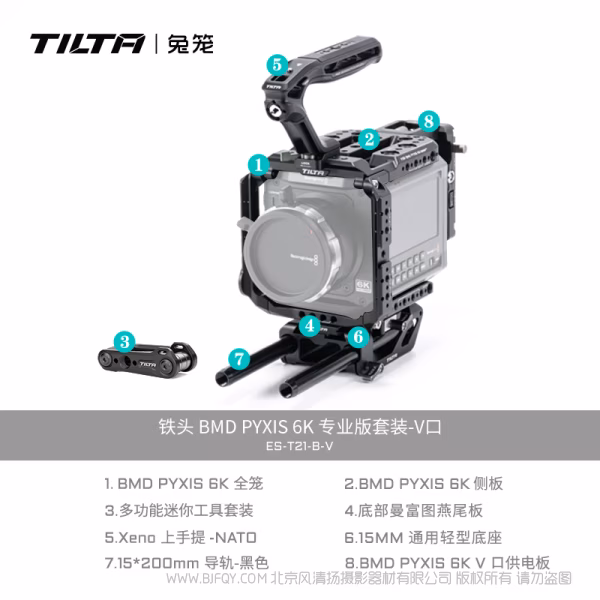

【专业版套装-V口】适用BMD PYXIS 6K ES-T21-B-V		2299元

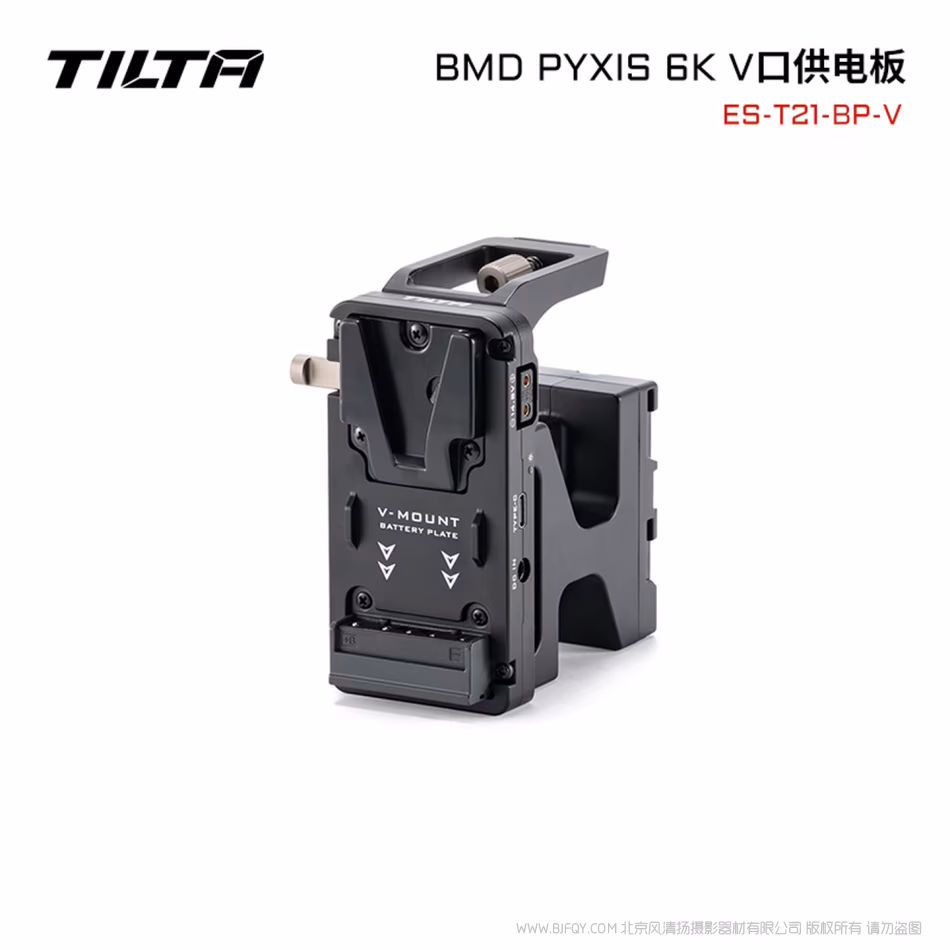

【V口供电板】适用BMD PYXIS 6K ES-T21-BP-V		769元

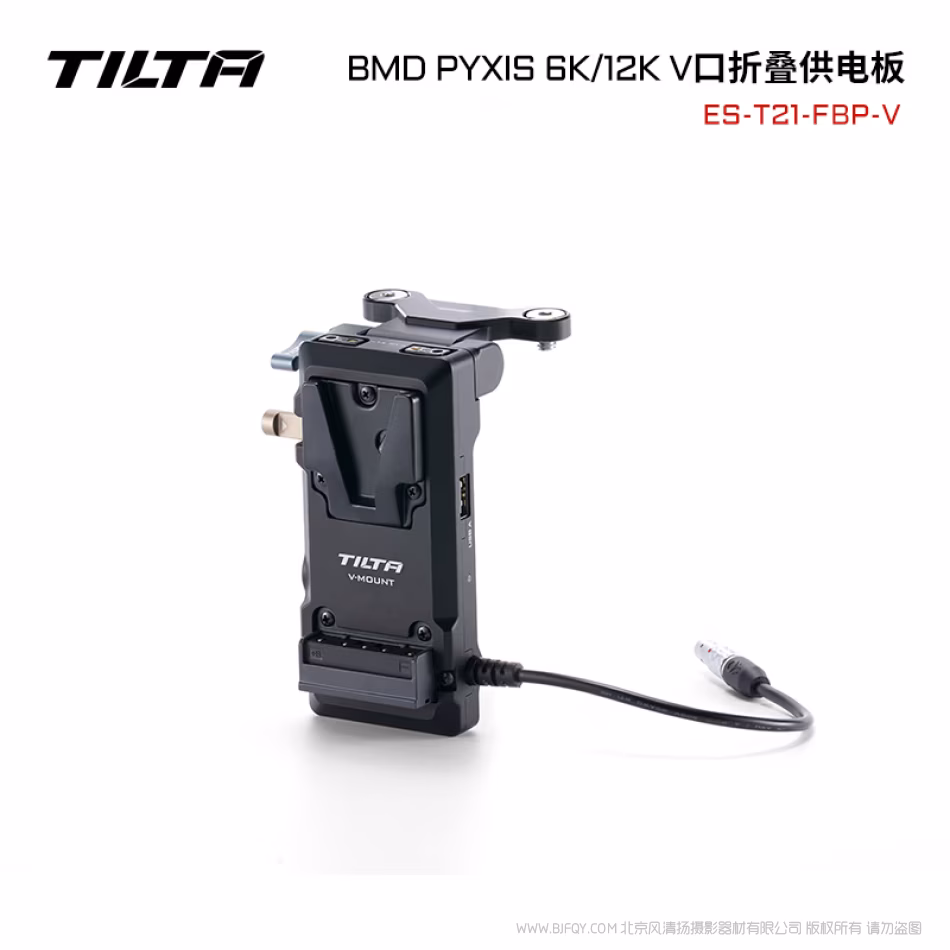

【V口折叠供电板】BMD PYXIS 6K/12K ES-T21-FBP-V		899元
【安东口折叠供电板】BMDPYXIS 6K/12K ES-T21-FBP-AB		899元

Introducing the Camera Cage for Blackmagic PYXIS 6K/12K Pro Kit

This camera cage provides protective armor for the camera body and utilizes modular design choices to greatly improve the functionality of the Pyxis through mounting options like NATO Rail, Arri Rosette, Cold Shoe, 3/8″-16 and 1/4″-20 threads with locating points.

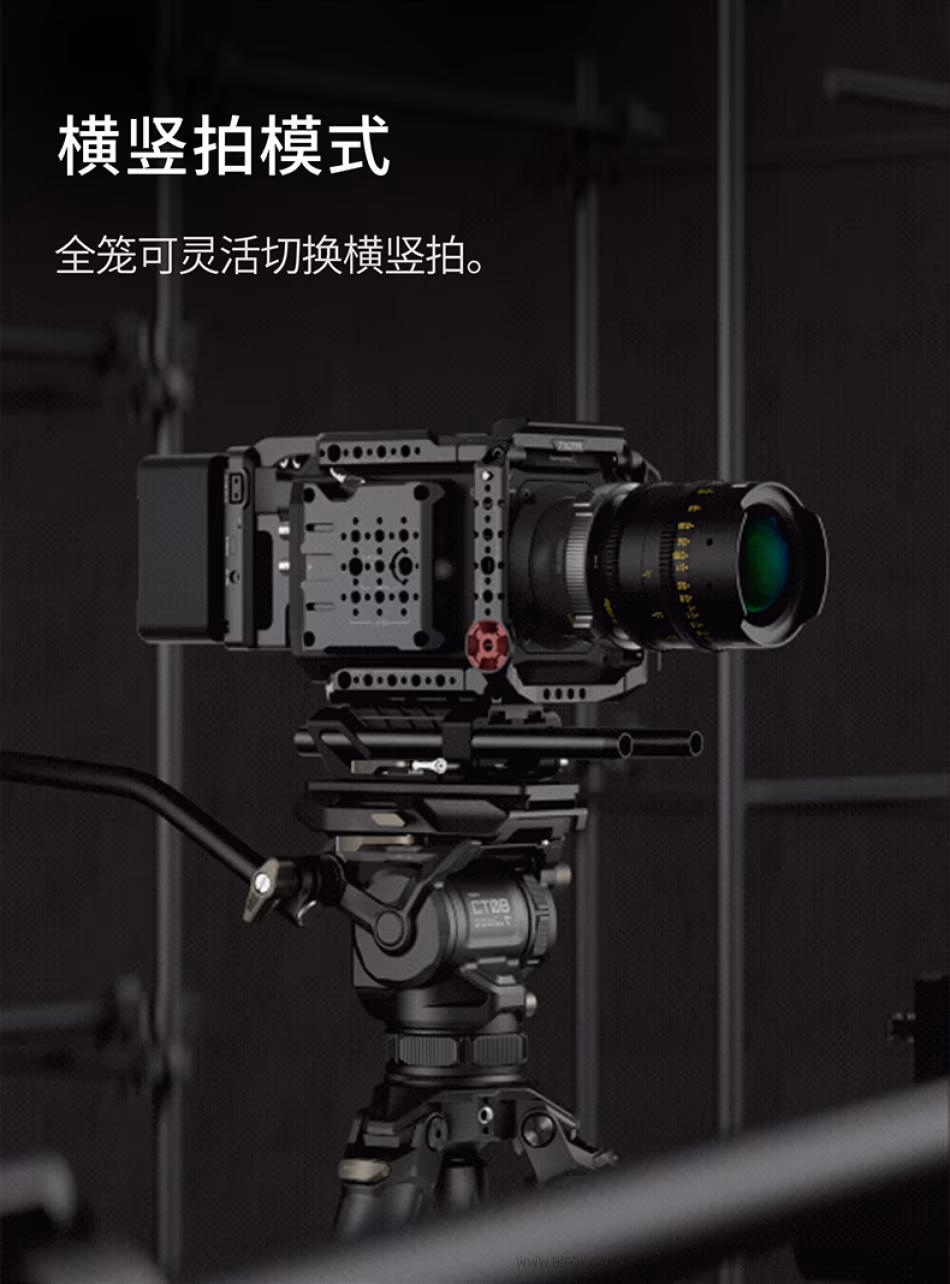

The Side Plate supports quick transitions to Vertical setups as it can be used as the bottom plate when mounted vertically and provides enough space between rods and lens for most accessories. When in this configuration, the plate features specifically positioned threads to align the baseplate with the optical center of the lens.

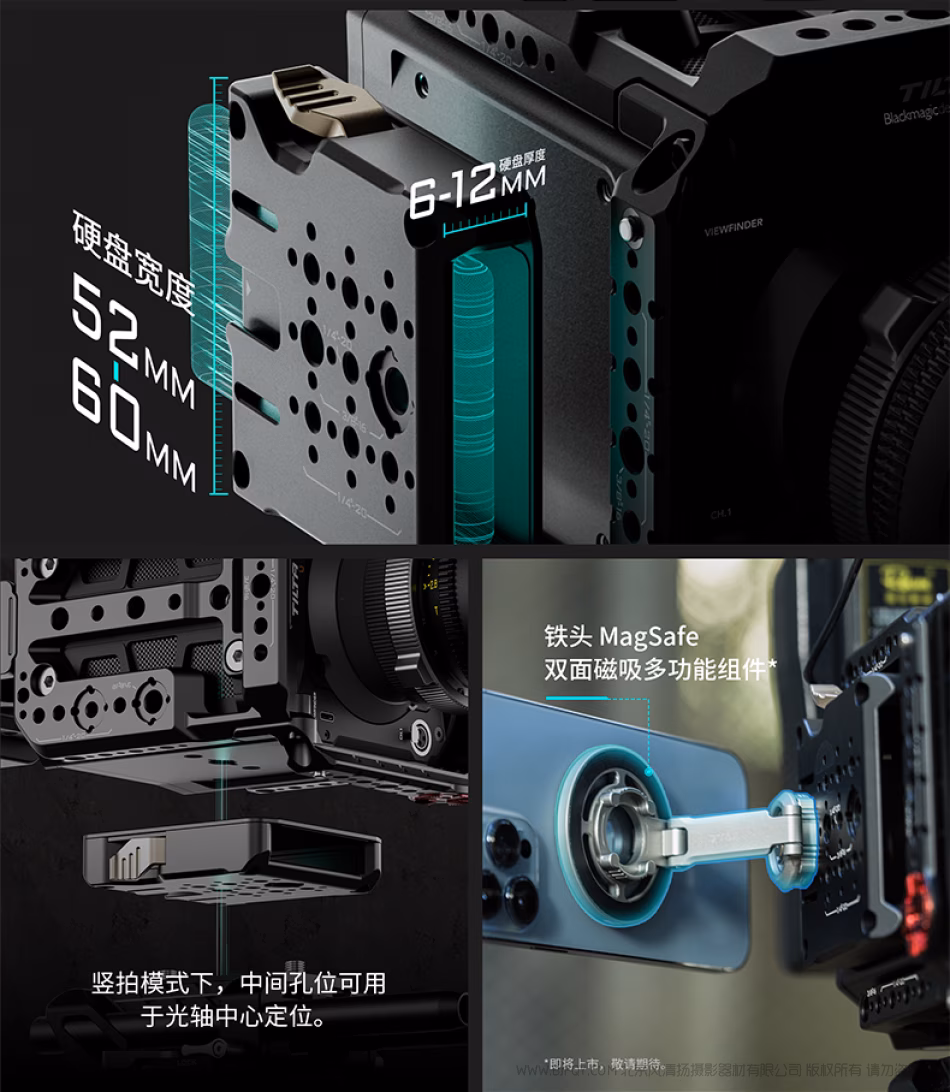

This Side Plate also supports external recording via the integrated SSD Mount and features multiple 1/4”-20 threads for various accessories. The SSD Mount accommodates hard drives 52mm-60mm wide and less than 12mm thick.

Both the Top and Bottom Plates are designed to avoid the body’s heat dissipation vents, ensuring the camera’s cooling performance remains unaffected. The Top Plate is compatible with the PYXIS native top handle and also features a detachable 3/8 to 1/4 thread adapter, allowing users to choose various top handles to best suit different sized setups.

Included in the Base Kit is the Xeno Top Handle, which connects to the Top Plate via NATO Rail. This improves handling and operating options via an elegant design with increased clearance. This handle features multiple mounting options for additional accessories including 1/4″-20 threads and a Cold Shoe Receiver, perfect for mounting an external monitor.

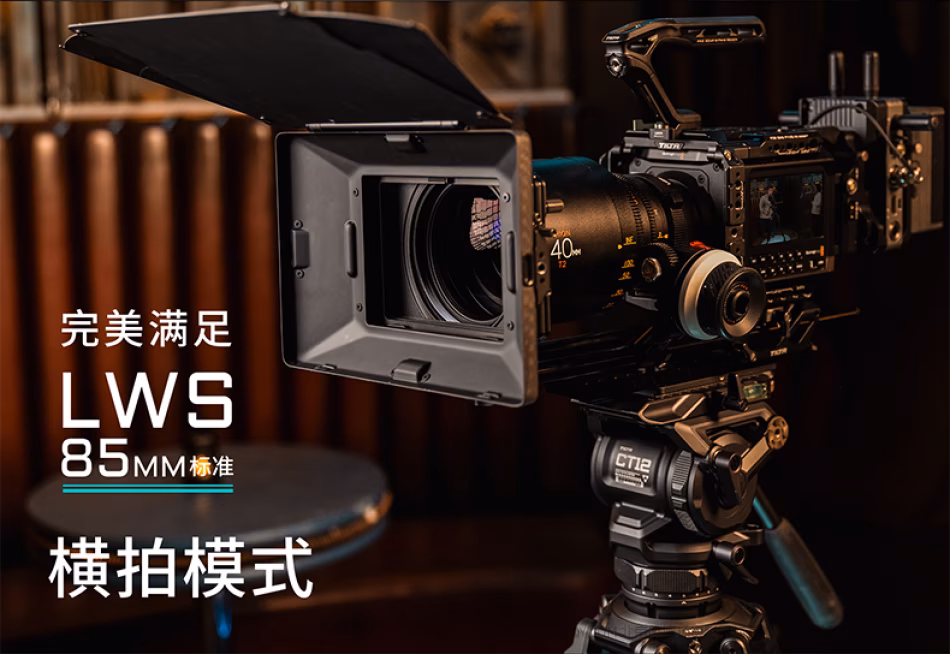

The included 15mm LWS Baseplate and two 15mm Rods allow users to mount rod based accessories like matte boxes or follow focus systems. On the bottom of the Baseplate is a Tilta Standard Dovetail Receiver, which can be adapted to work with Arri Standard Dovetails via our optional Tilta Standard to Arri Standard Multi-Functional Baseplate.

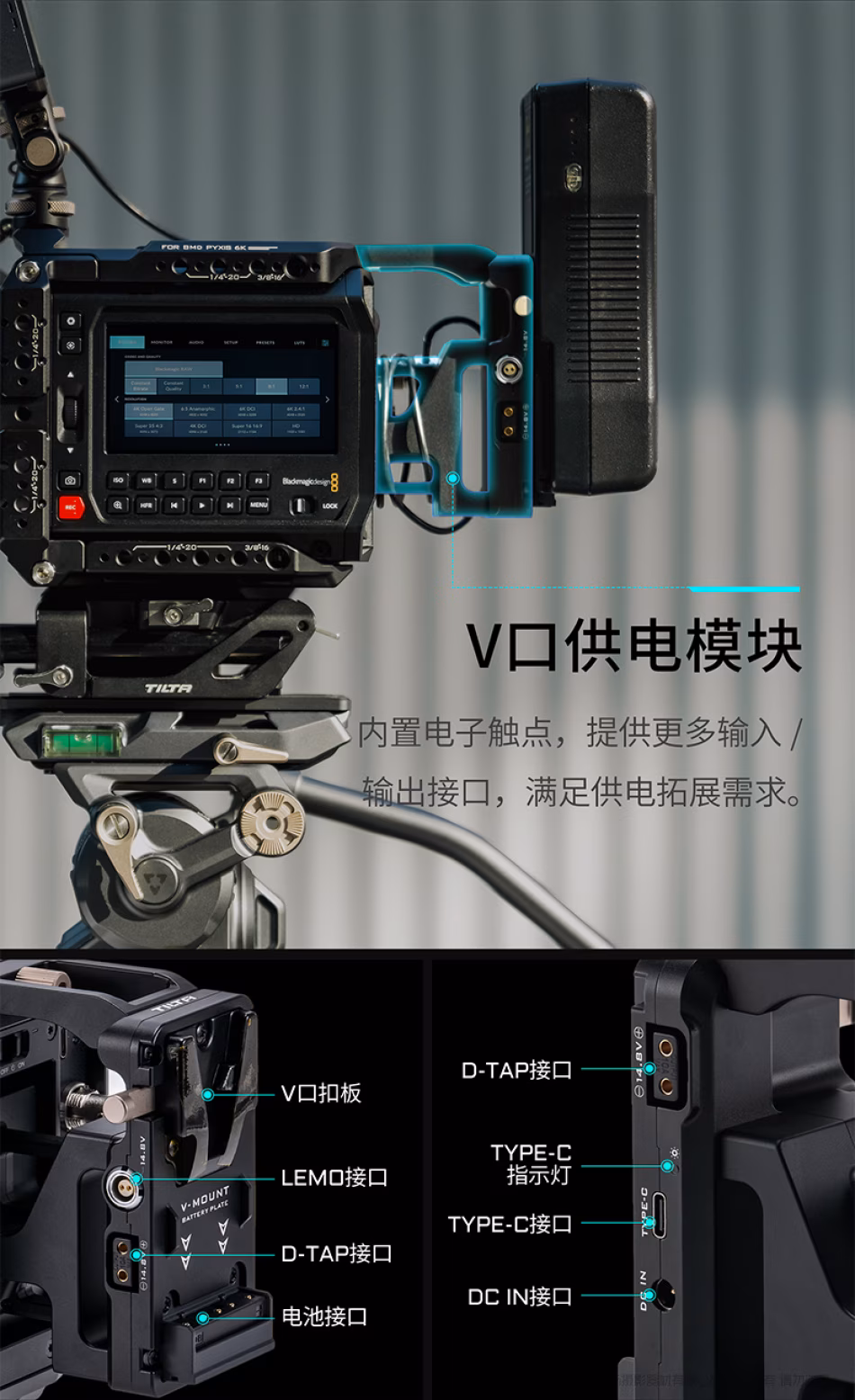

The Battery Plate easily mounts and locks into the battery compartment of the Pyxis in order to provide power to the camera and can be further secured to the Top Plate via a thumbscrew.

The Battery Plate features 2x 14.8V P-Tap ports, 1x 14.8V 2 Pin Lemo Port, 1x USB-C Port and one DC Power Input Port.

• 为Blackmagic Design PYXIS相机机身定制设计
• 安装附件：NATO螺纹、Arri Rosette、冷靴、1/4“-20和3/8”-16螺纹带定位点
• 侧板支持垂直安装，并设有SSD安装槽
• LWS底板支持15毫米杆，并安装在Tilta标准燕尾榫上
• 北约顶把手在作和作时提供了更好的灵活性

介绍Blackmagic PYXIS 6K/12K Pro套件的摄像笼

该相机笼为相机机身提供保护装甲，并通过模块化设计大幅提升Pyxis的功能，采用NATO导轨、Arri Rosette、冷鞋、3/8“-16和1/4”-20螺纹及定位点。

侧板支持快速切换到垂直配置，因为垂直安装时可用作底板，并且在杆和镜头之间提供足够空间，方便大多数配件安装。在此配置下，侧板配有专门位置的螺纹，以将底板与镜头光学中心对齐。

该侧板还支持通过集成SSD支架进行外部录制，并配备多颗1/4英寸-20螺纹，用于多种配件。SSD卡口可容纳宽52mm-60mm、厚度小于12mm的硬盘。

上下板设计均避免了机身散热口，确保相机的散热性能不受影响。顶板兼容PYXIS原生顶柄，并配备可拆卸的3/8至1/4螺纹适配器，允许用户根据不同尺寸选择多种顶柄。

基础套件中包含Xeno顶把，通过北约轨道连接到顶板。这通过优雅的设计和更大的净空，提升了控和作选择。该手柄支持多种安装选项，可安装额外配件，包括1/4英寸-20螺纹和冷靴接收器，非常适合外接显示器安装。

内置的15毫米LWS底板和两根15毫米杆，允许用户安装基于杆的配件，如哑光盒或跟踪对焦系统。底板底部装有Tilta标准燕尾榫接收器，可通过我们可选的Tilta Standard至Arri标准多功能底板，与Arri标准燕尾榫配合使用。

电池板可以轻松安装并锁定在Pyxis的电池舱中，为相机供电，并通过拇指螺丝进一步固定在顶板上。

电池板配备2个14.8V点滴接口、1个14.8V双脚Lemo接口、1个USB-C端口和1个直流电源输入端口。
