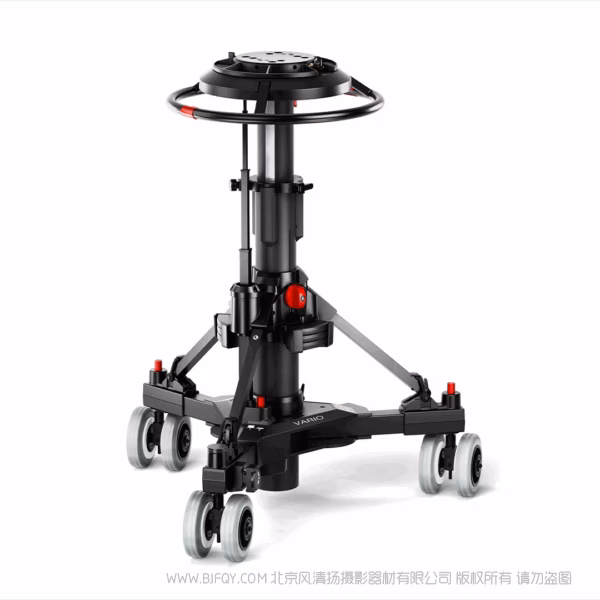

Sachtler®（萨科勒）S2302-0002 Vario Ped 1-70 OB 液压升降台 气压架 70KG承重

Vario Ped 1-70 OB

SKU: S2302-0002

• Fully steerable pedestal for payloads up to 70 kg / 154 lb
• 2-stages for flexible height adjustment with one balanced stage for on-shot height movement
• Detachable dolly for easy transportation

Highly stable yet lightweight, the Vario pedestals provide optimum support for live production environments.

The Vario Ped 1-70 combines robustness, reliability, and portability with smooth, precise movement for accurate talent tracking. Designed with ergonomically positioned controls, it offers crab & steer functionality and supports payloads up to 70kg / 154lb.

With its two-stage design, the Vario Ped 1-70 provides flexible height adjustment for both seated and standing eyelines, even at close range. The upper stage is perfectly balanced for on-shot performance, while the lower stage is balance-assisted for easy elevation and can be positioned to extend the height range.

The pedestal has an integral manual pump as well as an inlet valve for use with an external source, and includes a pressure gauge for clear and reliable set-up. For added flexibility, trim weights are supplied and can be easily fitted into dedicated slots on the steering wheel, allowing quick adjustment of column pressure to compensate for temperature changes during production.

Designed to be used in outside broadcast applications the Vario Ped 1-70 OB comes with 16 cm / 6.3 inch wheels for greater ground clearance. The detachable dolly allows the pedestal to be simply broken down into two sections for easy storage and transportation. It also features narrow tracking and transit widths to allow for movement in tight spaces.

Technical Specifications

Metric Imperial

Vario Ped 1-70 with OB wheels and manual pump

• 全可转向的基座，可承载较高70公斤/154磅的有效载荷
• 两级高度灵活调节，一级平衡用于拍摄时高度移动
• 可拆卸推车便于运输

Vario基座高度稳定且轻便，为现场制作环境提供了较佳支撑。

Vario Ped 1-70 结合了坚固、可靠和便携性，以及平稳精准的运动，实现了精准的人才追踪。该装置采用符合人体工学的控制装置设计，具备捕蟹和舵机功能，支持较高70公斤/154磅的载重。

Vario Ped 1-70采用两级设计，即使在近距离，也能灵活调节坐姿和站立视线高度。上级完美平衡，适合当场表现，而下级则配备平衡辅助，便于仰角，并可调整位置以延长高度范围。

底座内置手动泵和供外部水源使用的进气阀，并配有压力表，确保设置清晰可靠。为增加灵活性，车内还提供配重，可轻松安装在方向盘专用槽中，方便快速调节柱压力，以应对生产期间的温度变化。

Vario Ped 1-70 OB设计用于户外广播，配备16厘米/6.3英寸轮毂，以提升离地间隙。可拆卸的推轨使基座可以简单地拆分为两部分，便于存放和运输。它还采用窄窄的跟踪和传输宽度，以便在狭窄空间内移动。

技术规格

公制英制

盒子里

带OB轮和手动泵的Vario Ped 1-70
