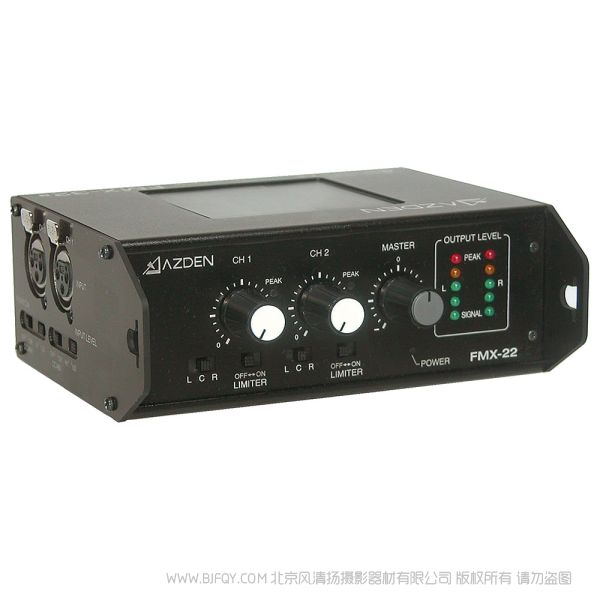

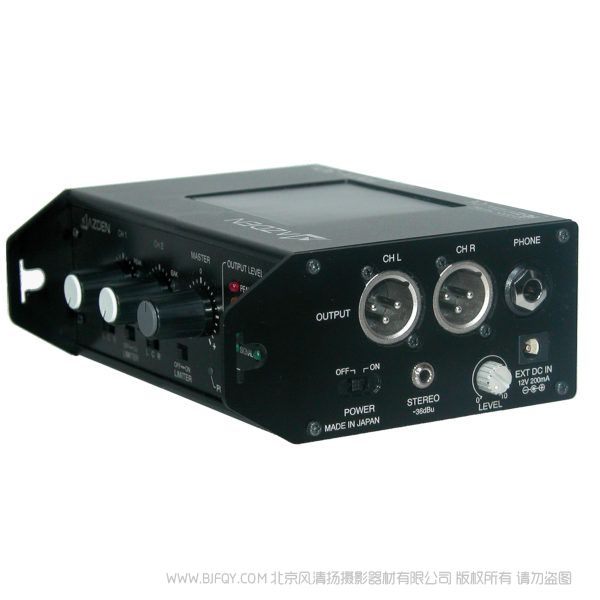

阿兹丹 Azden  FMX-22 - 2 Channel Portable Mixer 2通道 调音台 混音器

阿兹丹 Azden FMX-22 - 2 Channel Portable Mixer 2通道 调音台 混音器

1480.00

咨询

Two channel portable audio field mixer with 2 XLR in, 2 XLR out and mini-jack out.

Features

  • 2 balanced XLR mic inputs and pan controls
  • Switchable 48V phantom power and limiting
  • 5-step LED master bus meters
  • 2 balanced XLR outputs
  • Stereo mini-jack output for DSLR cameras
  • Headphone out with level control
  • 4x AA battery powered
  • Optional A/C adapter
  • 2 year warranty





New and improved, the FMX-22 now uses the same circuit topology as the more expensive Azden mixers. With improved signal to noise ratio and wider frequency response the new FMX-22 is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (4-“AA”) mixer can be attached directly to any flat surface with supplied hook-and-loop fastener. The FMX-22 has the following features: 2 XLR microphone inputs each with 2 input settings, 2 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED meters easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.



  •
    • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
    • Monitor Output: 50-17,000Hz (-3dB)

Noise Level

  •
    • Left & Right Channel: -119dBu (A weighted, Input Equivalent Level)
    • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)

MIC Input Level

  •
    • LO -21 dBu Gain +58dB max gain
    • HI -5dBu Gain +42dB max gain

Monitor Output

  •
    • 3.5mm Stereo: -4dBu (32 ohm load)
    • (Recommended load 16-100 ohms)

Maximum Output Level

  • Balanced Output:
  • +15dBu (5K ohms)

[/one_half]

[one_half_last]

  • -20dBu (2K ohms)

Battery Type/Duration

  • 4 – AA Alkaline – 15 hours

Current Drain

  • 77mA nominal (Phantom Power Off)
  • 118mA maximum (Phantom Power On)

Phantom Power

  • Voltage: 48VDC (+/- 1.5VDC)

Dimensions

  • Size: 53.5H x 145W x 120D mm (2.19 x 5.70 x 4.75 inches)
  • Weight w/o Battery: 23.58 ounces (670 grams)
