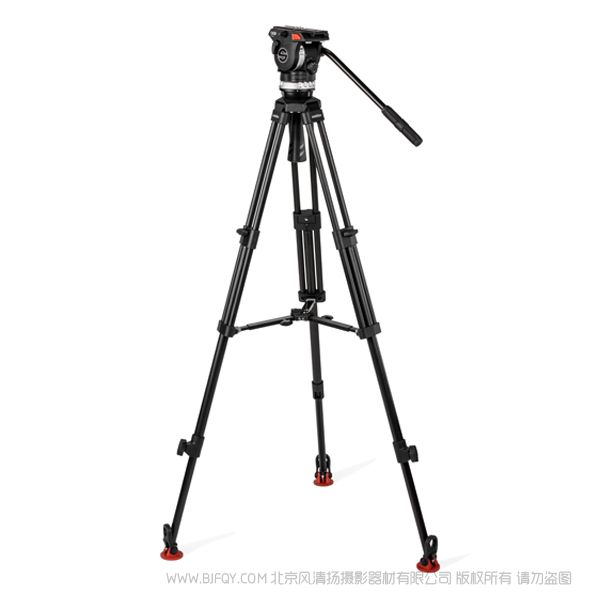

沙雀 System Ace XL MS AL 1018A 三脚架液压云台套装 中置
￥ 12100.00元
相关推荐
0.00
萨科勒 Sachtler aktiv12T S2074T 液压云台（侧装），采用 SpeedLevel 及 SpeedSwap 创新技术
0.00
Sachtler 萨科勒 System aktiv12T flowtech100 MS SKU: S2074T-FTMS 14kg承重 中置三脚架云台套装 套包
70500.00
Sachtler 萨科勒 System aktiv14T flowtech100 MS SKU: S2076T-FTMS 100碗 16kg承重 三脚架液压云台套装 套包
0.00
萨科勒 Sachtler aktiv10T SKU: S2072T 液压云台（侧装），采用 SpeedLevel 及 SpeedSwap 创新技术 2022新品
79800.00
Sachtler 萨科勒 System aktiv14T flowtech100 GS SKU: S2076T-FTGS 套装三脚架液压云台套包

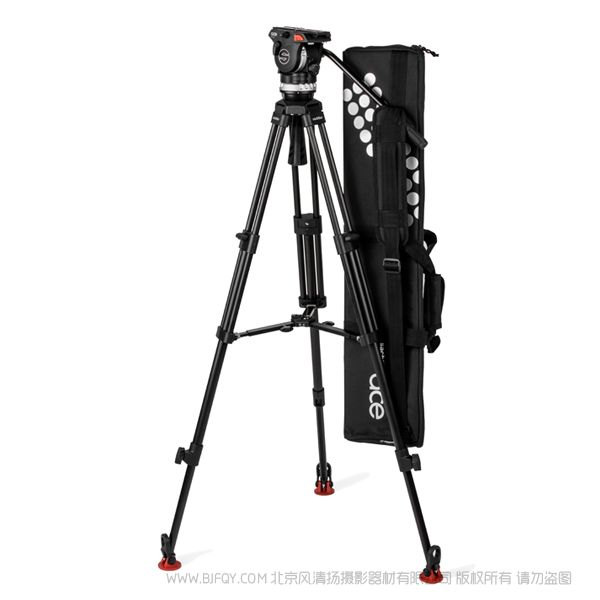

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.
Professional performance means maximum stability and jerk-free camera movement, even when supporting heavier digital cine-style cameras and rigs. The Sachtler Ace XL Fluid Head supports up to 8 kg and the eight counterbalance steps mean that camera balancing is always quick and simple. The lightweight design means that it won’t weigh you down, while the high degree of stability means that it won’t let you down either.
A range of features make the Sachtler Ace XL Fluid Head a versatile part of your kit. The 75 mm ball-based head has an integrated flat bottom designed to accommodate a wide range of configured rigs. The integrated flat head base means that the Ace XL can be modified for shooting with a slider. Once you have set up, the three steps of pan and drag plus zero allow for effortless smooth movement. Durable, lightweight and designed with the user in mind, this fluid head will remain a part of your kit for years.
是Ace XL三脚架特供套装，含75mm液压云台及功能性运输软包。在不平坦地面和外景拍摄地工作的人员均可使用含中置延伸器的两级三脚架。 工作快速高效，轻松实现完美拍摄效果。一旦摄像机设定好动平衡， Sachtler的阻尼技术将持续稳定地给您带来精细而平滑的操控。3档的水平和垂直阻尼也可助您快速而直观地操作，同时始终确保装备的可靠性。75毫米云台滑板的滑动范围达120毫米，提升工作灵活性，获得较佳拍摄效果。
产品线
Ace
手柄数量
1
较大承重
2 to 8 kg
球碗口径
75 mm
延伸器类型
Mid-level spreader
材料
Carbon Fibre
收纳长度
860 mm
三脚架级数
2
高度范围 - 含延伸器
0.79 to 1.70 m
重量
3.90 kg
温度范围
-30 to 60 °C
俯仰范围
90° to -75°
托板滑动范围
104 mm
接口兼容性
Slide-in
动平衡
8 个动平衡档位
阻尼
3 种水平和垂直阻尼设置 + 0
Range
Ace
Pan bar count
1
Payload
2 to 8 kg
Bowl size
75 mm
Weight
4.50 kg
Spreader type
Mid-level spreader
Material
Aluminium
Transport length
860 mm
Tripod stages
2
Height with spreader
0.79 to 1.70 m
Temperature range
-30 to 60 °C
Tilt range
90° to -75°
Sliding range
104 mm
Interface Compatibility
Slide-in
Counterbalance
8 counterbalance steps
Drag
3 + 0 horizontal and vertical grades of drag
