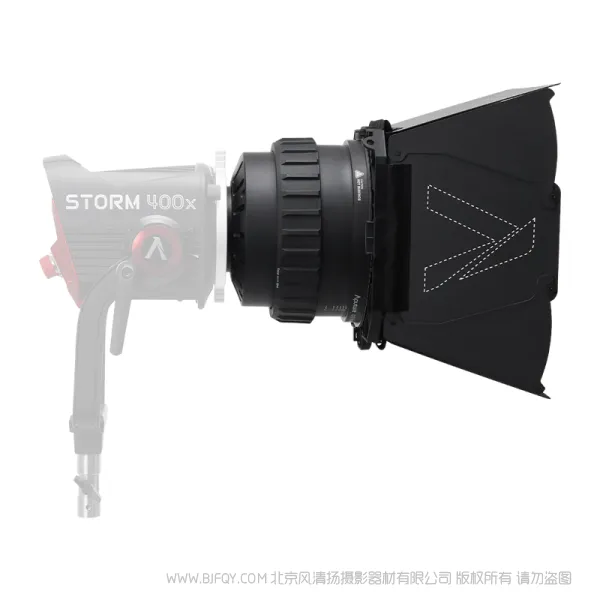

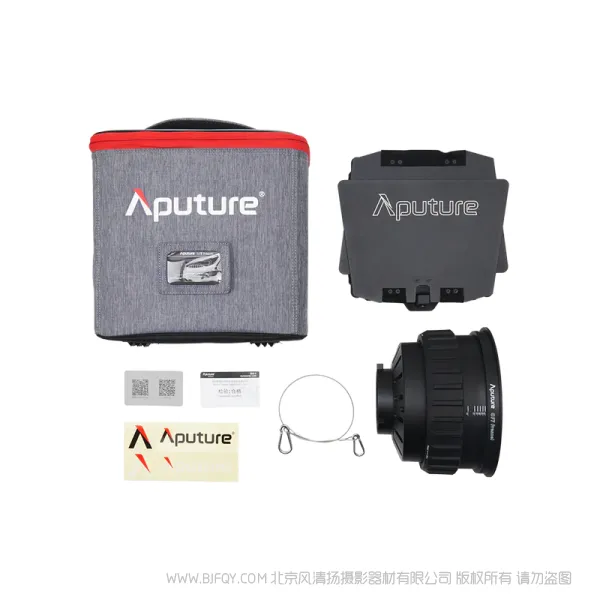

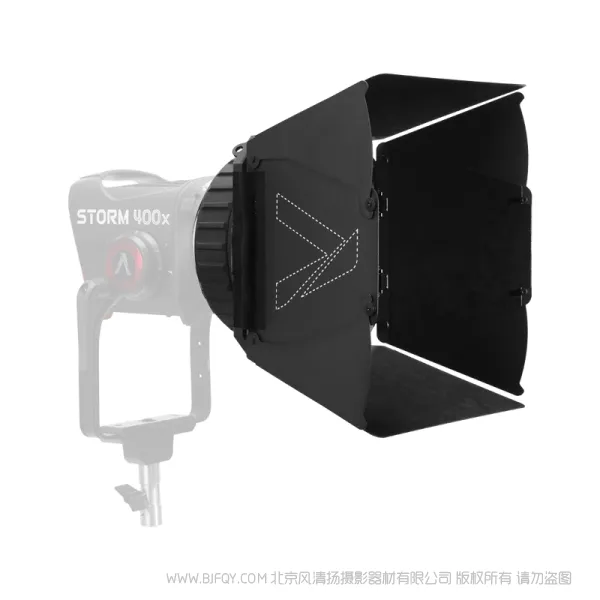

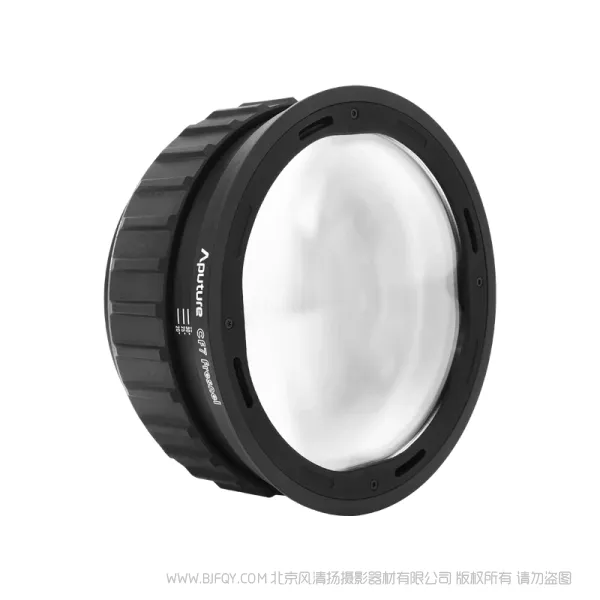

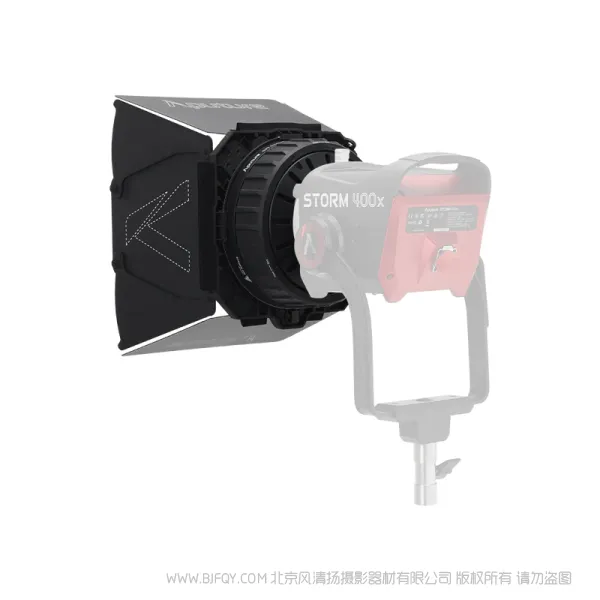

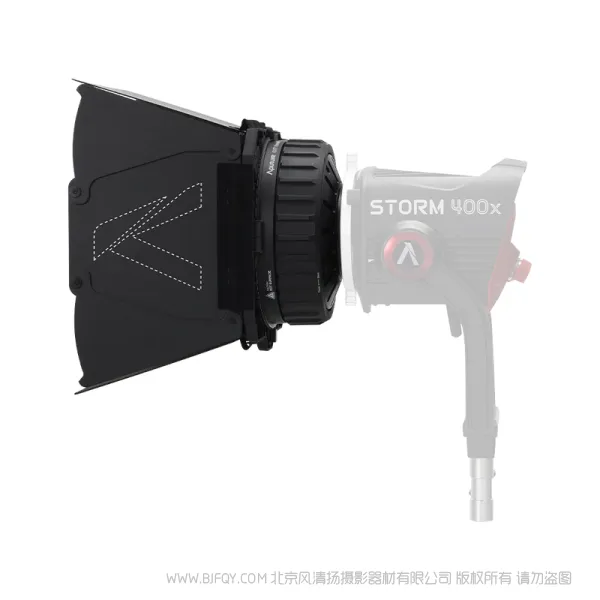

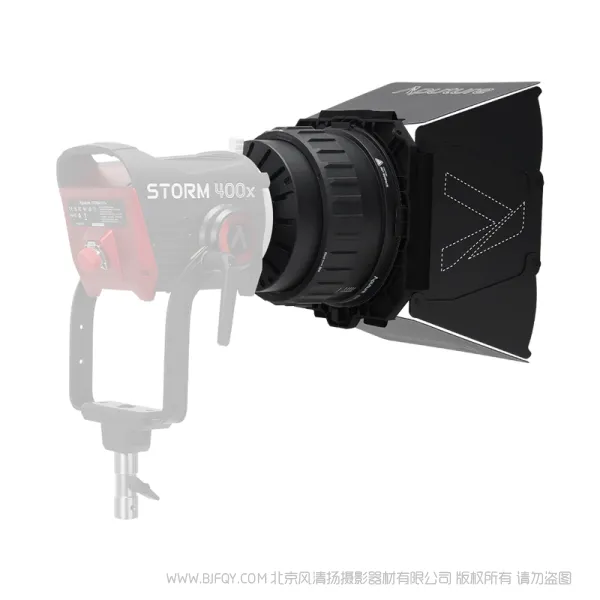

爱图仕 Aputure CF7 Fresnel and Barn Doors Kit 7英寸菲涅尔变焦透镜带八页遮光板 7in Bowens Mount fresnel with barn doors for STORM 400x
￥ 1390.00元
相关推荐
0.00
爱图仕 Aputure STORM 700x Skid Skid attachment for STORM 700x
0.00
STORM XT52 Skid 托板 托架 Skid attachment for STORM XT52
360.00
爱图仕 Aputure BM6825 25º Reflector 反光罩 25º hyper-reflector designed for the STORM 700x
1299.00
爱图仕 Aputure Quick Dome 90/60/40
2790.00
爱图仕 Aputure CF10 Fresnel and Barn Doors Kit 10英寸菲涅尔变焦透镜带八页板 10in Bowens Mount fresnel with barn doors for STORM 700x
The CF7 Fresnel with Barn Doors Kit is a 7 inch Bowens Mount fresnel with included 8-leaf barn doors. It offers a beam range of 15º to 40º while maintaining a compact profile. The dual-expanding focusing system with multiple lens elements drastically reduces size and weight without compromising optical performance. The compact design is optimized for use with the STORM 400x.
CF7菲涅耳谷仓门套件是一个7英寸的鲍恩斯菲涅尔，包括8叶谷仓门。它提供15º至40º的光束范围，同时保持紧凑的轮廓。双扩展聚焦系统与多个镜头元件大大减少尺寸和重量，而不影响光学性能。紧凑的设计针对STORM 400x的使用进行了优化。
CF7 Fresnel and Barn Doors Kit Photometrics
| CCT | Dis. | 15º Spot | 40º Flood |
|---|---|---|---|
| 1,800K | 1m | 179,800 lux 16,703 fc | 40,600 lux 3,772 fc |
| 1,800K | 3m | 17,700 lux 1,644 fc | 4,780 lux 444 fc |
| 3,200K | 1m | 225,200 lux 20,921 fc | 51,000 lux 4,738 fc |
| 3,200K | 3m | 22,210 lux 2,063 fc | 6,020 lux 559 fc |
| 4,300K | 1m | 237,300 lux 22,045 fc | 53,900 lux 5,007 fc |
| 4,300K | 3m | 23,470 lux 2,180 fc | 6,400 lux 595 fc |
| 5,600K | 1m | 236,700 lux 21,989 fc | 53,900 lux 5,007 fc |
| 5,600K | 3m | 23,260 lux 2,161 fc | 6,380 lux 593 fc |
| 6,500K | 1m | 228,700 lux 21,246 fc | 52,700 lux 4,896 fc |
| 6,500K | 3m | 22,690 lux 2,108 fc | 6,240 lux 580 fc |
| 10,000K | 1m | 225,200 lux 20,921 fc | 4,784 fc |
| 10,000K | 3m | 22,110 lux 2,054 fc | 6,100 lux 567 fc |
| 20,000K | 1m | 212,600 lux 19,751 fc | 48,500 lux 4,506 fc |
| 20,000K | 3m | 20,760 lux 1,929 fc | 5,740 lux 533 fc |
